QuickCuff™ | Innovative Blood Pressure Cuffs
Diagnostic
QuickCuff™ | Innovative Blood Pressure Cuffs
Measuring blood pressure has never been so easy New!
Click and go easy placement!
A revolutionary, easy to use and stress free way to measure blood pressure
- No velcro:
- Reassuring for the animal
- Easy to clean
- One-handed application
- Resistant
- Fits all different limbs (tapered & untapered)

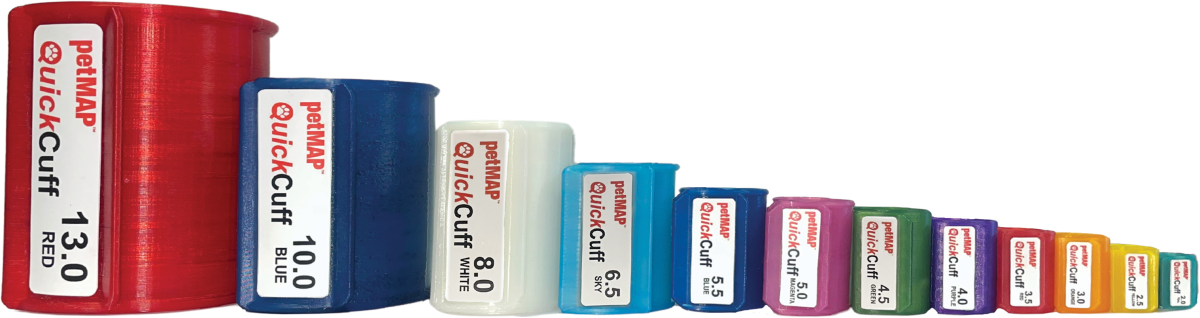

- 1 color for each size (12 sizes from 2 to 13 cm)

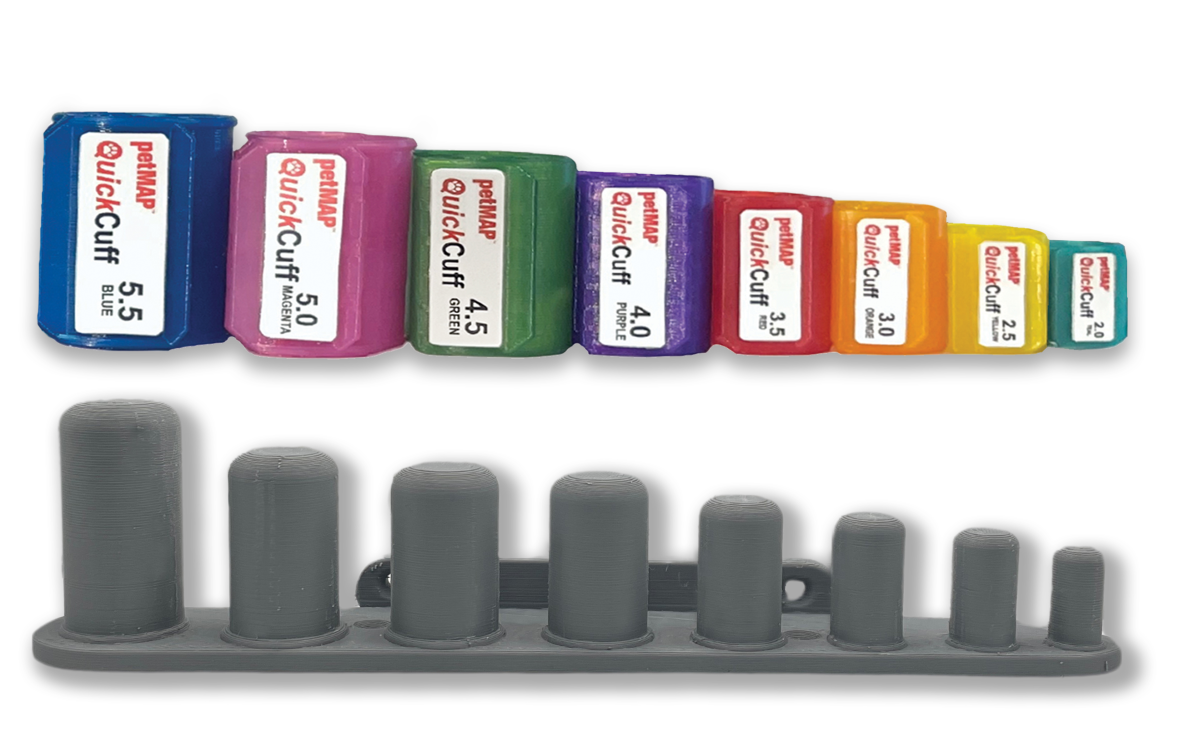

- Optional storage rack
How to choose the right QuickCuff™?
| QuickCuff™ size | Circumference | |
|---|---|---|
| Min | Max | |
| 2 cm | 3.10 cm | 4.40 cm |
| 2.5 cm | 4 cm | 5.7 cm |
| 3 cm | 5.3 cm | 6.3 cm |
| 3.5 cm | 5.97 cm | 7.23 cm |
| 4 cm | 6.6 cm | 8.8 cm |
| 4.5 cm | 7.54 cm | 9.42 cm |
| 5 cm | 7.85 cm | 10.37 cm |
| 5.5 cm | 8.8 cm | 11 cm |
| 6.5 cm | 11 cm | 13.19 cm |
| 8 cm | 14.45 cm | 17.28 cm |
| 10 cm | 21.05 cm | 23.88 cm |
| 13 cm | 24.82 cm | 29.53 cm |
Still available petMAP™ range!
Compare its features and benefits in the chart below:
PetMAP™ blood pressure device continuously uses Dual Oscillation Channel Analysis during each determination. High and low gain channels are analyzed simultaneously BP measurement reliability and sensitivity are enhanced across the broadest range of patient sizes. Feature requires no user setting or adjustment.
PetMAP™ blood pressure device has PPO (petMAP Proprietary Optimization), allowing the user to specify the species (cat, dog) and measurement site (forearm, tail, hind foot).
PPO improves the correlation to IntraArterial Pressures (IAP), the patient’s true blood
pressure.
PetMAP™ blood pressure device calculates and automatically displays the NSV (Nominal Session Value) after each reading during a session.
NSV is a much more robust calculation than a simple average. NSV is most representative
ot the patient BP during a session, and is typically the charted value.
PetMAP™ blood pressure device displays the cuff pressure and the oscillation amplitude during a determination.The user has the ability to visually assess the quality of each reading and to end the determination if appropriate. Severe motion artifact is visualized during the reading.
PetMAP™ blood pressure device can display the last ten readings as both a tabular list as well as a graphical chart; values are “aged” from the time of power-up.
Individual determinations are available for charting. The user can view the graph and easily see if the values are consistent and if the session can be terminated.
PetMAP™ blood pressure device is compact, handheld and battery operated.
Convenient for exam room use (hypertension screening), but also for trauma, anesthesia, procedures and even house calls.
PetMAP™ blood pressure device includes seven cuffs of various sizes from 2 to 5.5 cm.
The proper cuff size is critical to accurate BP measurement. PetMAP provides the broadest cuff size range available.
PetMAP™ blood pressure device is specifically developed for blood pressure measurement on cats and dogs.
PetMAP™ blood pressure device provides systolic, diastolic, mean arterial pressure, and heart rate using a propriety new oscillometric technology for enhanced sensitivity, accuracy, and performance.
PetMAP™ blood pressure device is based on intra-arterial measurements.
Integrated graphic display provides
- Digital display of systolic, diastolic, MAP and heart rate
- Real-time display of the oscillometric “envelope”
- Tabular list of measurement session values
- Graphical trend of session values
- Real-time calculation and display of the NSV
| petMAP graphic II | petMAP g3 | petMAP+ II | petMAP+ II SpO2 | |
|---|---|---|---|---|
| Measured parameters |
|
|
|
|
| Display | Color LCD, Touchscreen 4.3'' | Color LCD, Touchscreen 5'' | Color LCD, Touchscreen 5'' | Color LCD, Touchscreen 5'' |
| Data storage/Transfer connectivity | SD card (not provided) | SD card / Mini USB (both not provided) | ||
| Power | 4 AA Alakaline | 4 AA NiMH and AC/DC Adapter | ||
| Gonflage des brassards | Automatique | Automatique et programmable en mode monitoring | ||
| NIBP features | PPO (petMAP proprietary optimizations - species & cuff site settings) - NSV (Nominal Session Value) | |||
| Included accessories |
|
|
|
|
| Optional accessories |
|
|
|
|
| Dimensions and weight | 15 x 8 x 3 cm - 400 gr | |||
Do not hesitate to send us your comments to share your experience
QuickCuff™ | Innovative Blood Pressure Cuffs in video
